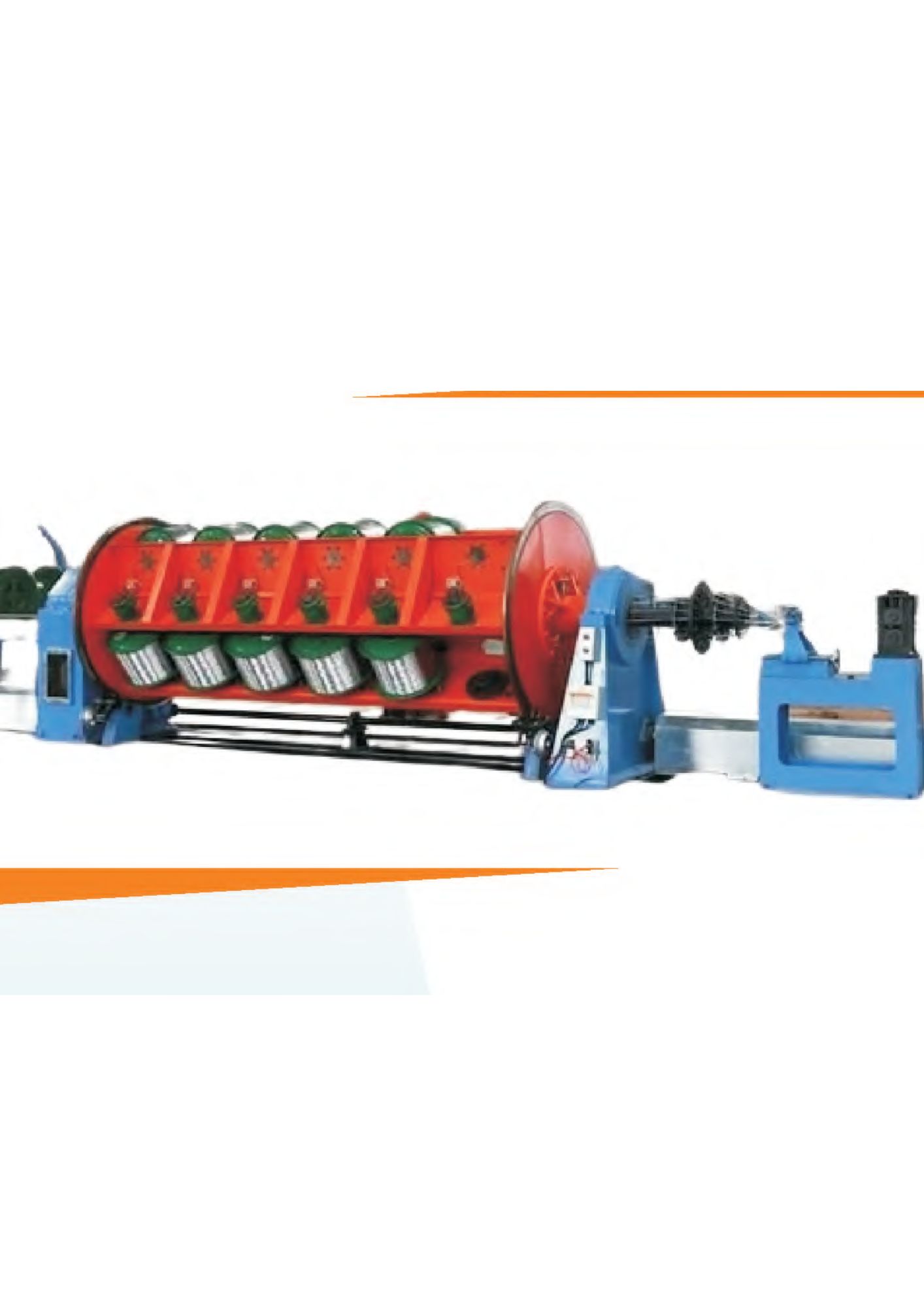

Armouring Machine

Used for armouring of strip/round wire on insulated core as well as to laid-up of multi core. Armouring machines are manufactured in different design as per customer's requirement. Available in single cage or double cage (Tandem cage).

Technical Specifications:

• Cage Configuration: 24 Bobbin, 36 B, 48 B, 54 B, 72 B (36B+36B), 90B (42B+48B)
• Cage Speed: 200/150/120/ 100/80 rpm
• Bobbin Size: Ø 400/Ø500/Ø 630 mm as per DIN 46395/46397 standard
• Rotor Structure: Precision steel fabricated motor, supported on spherical roller bearing at both ends
• Drive: DC/ AC drive with common line shaft drive / Individual cage

SARVOTTAM Advantages

• Delivery as per schedule
• Best quality raw materials used
• Designed by Experienced Professionals
• Load testing done through Solidworks Simulation
• Robust construction to ensure better safety Of Cable / Conductor
• Customization as per requirement
• Higher Reliability, Better Strength & More Durability

Machine Features

• Bobbin Holding: Pintle Type
• Bobbin Loading: Manual single basket loading by hoist
• Capstan Unit: Ø 1500 mm / Ø 2000 mm / Ø 2500 mm / Ø 3000 mm
• Pay-Off & Take-Up: Ø 1600 mm to Ø 4000 mm
• Driven by flash lubricated gearbox
• High-precision rotor structure
