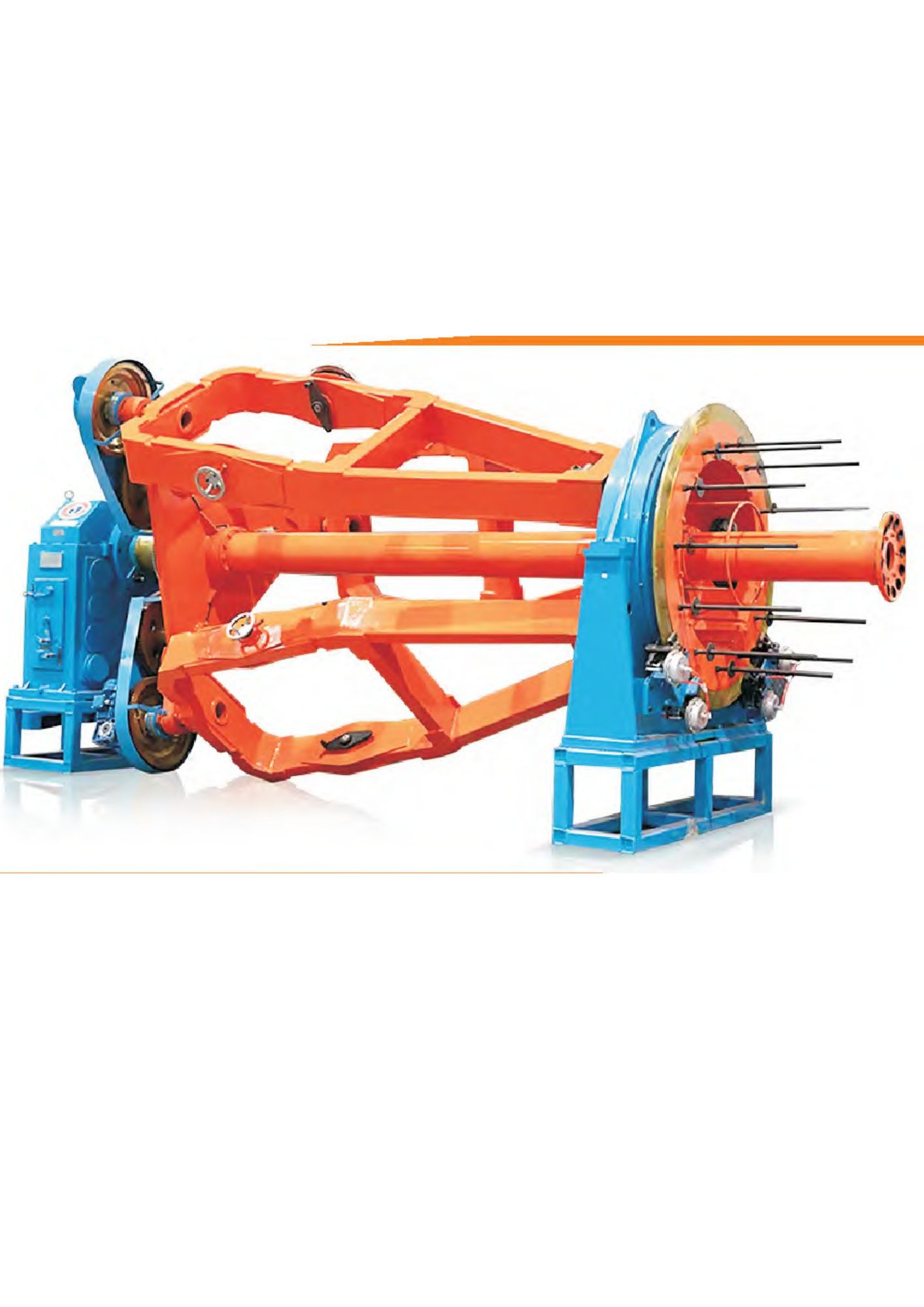

Core Laying Up Machine

The machine is used for cabling/laying the multi core (2, 3, 31/2, 4, 5), of PVC cables, XLPE cables in round or sector shaped for LT and HT Cables. The machine is also used for Laying of Ariel Bunched Cables.

Main Features:

• Machine may strand the round cables with back twist and sector cables without back twist
• Line drive by A.C. / D.C motors with electronic or mechanical synchronization
• Facilitated with motorized sector correction
• Main shaft is supported with roller bearings for easy maintenance
• Heavy Duty Pneumatic Drum Brake for Main Cage
• HMI and PLC Equipped (optional)

SARVOTTAM Advantages

• Delivery as per schedule
• Best quality raw materials used
• Designed by Experienced Professionals
• Load testing done through Solidworks Simulation
• Robust construction to ensure better safety Of Cable / Conductor
• Customization as per requirement
• Higher Reliability, Better Strength & More Durability

Technical Highlights

• Special Gear Boxes for Main Drive
• Easy Lay Setting
• Range of Take up and Pay offs available
• Heavy Duty Haul Off Belt Caterpillar Unit
• Inline Tangential/Concentric Taping Heads
• High performance synchronization between components
