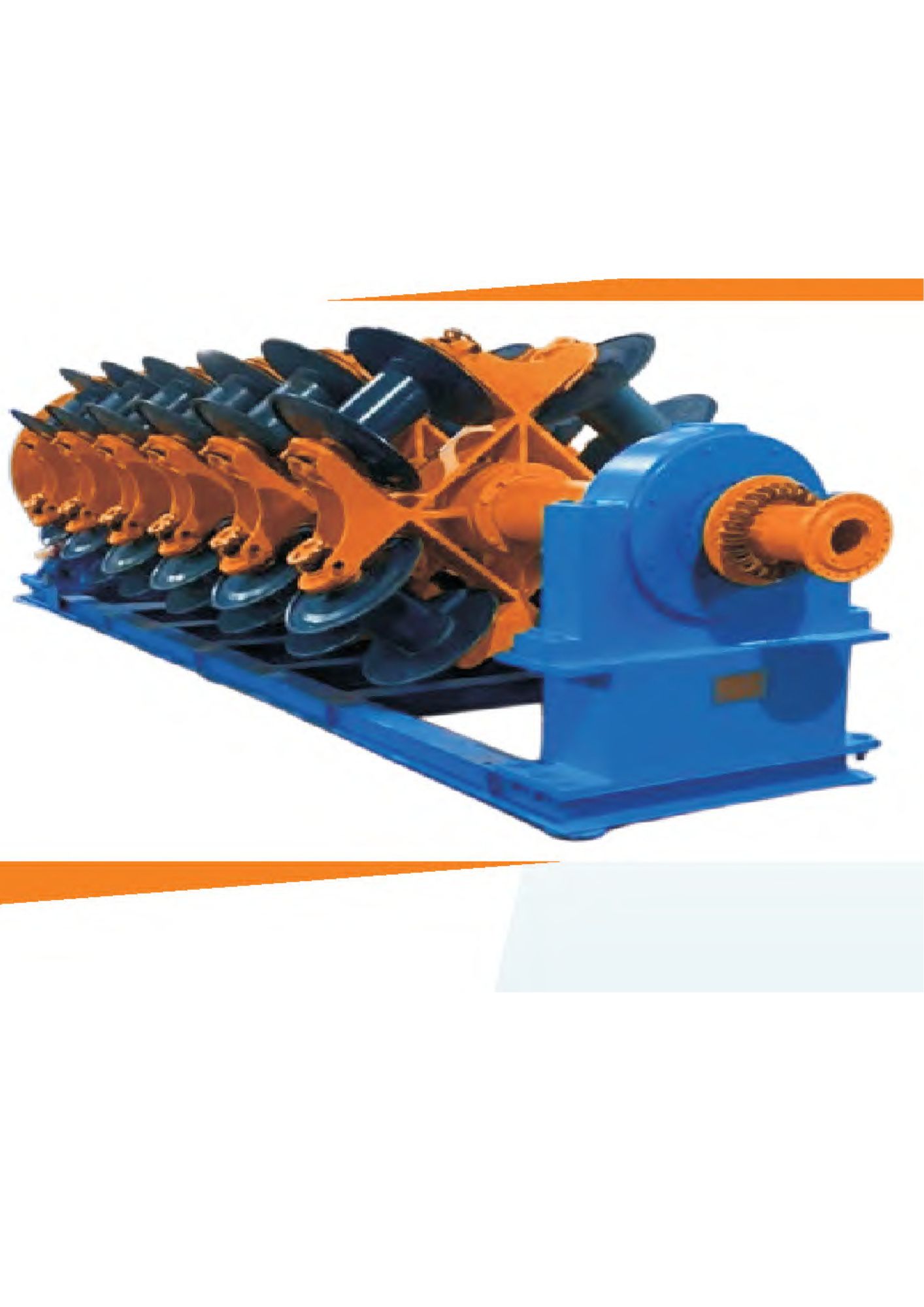

Rigid Stranding Machine (Steel, AL & CU)

Used to make stranded/compacted round, sector (straight/prespiral) conductor as well as stranding of multi insulated core. Manufactured in different designs as per customer's requirement. Available in fork type and cage type with or without batch loading.

Technical Specifications:

• Cage Configuration: 19 Bobbin, 37B, 54B, 61B and 91B
• Wire Size: Copper (Ø 1.7mm - Ø 4mm), Al Alloy (Ø 1.7mm - Ø 4mm), Aluminium (Ø 2mm - Ø 5mm)
• Bobbin Size: Ø 500/630 - DIN 46395/46397
• Cage Speed: 200/170/150/120/100 rpm
• Conductor Range: 16mm² to 1000mm²
• Drive: DC/AC drive with common line shaft / individual cage drive with complete automation

SARVOTTAM Advantages

• Delivery as per schedule
• Best quality raw materials used
• Designed by Experienced Professionals
• Load testing done through Solidworks Simulation
• Robust construction to ensure better safety Of Cable / Conductor
• Customization as per requirement
• Higher Reliability, Better Strength & More Durability

Key Features

• Pintle Type Bobbin Holding
• Manual Single basket loading by hoist
• Dual Capstan unit up to Ø 2500 mm
• Pay-Off and Take-Up Unit: Ø 1600 mm to Ø 4000 mm
• High speed and stable performance
• Precision tension control
